Φ200-Φ300 High Speed Stranding Machine

SKU: HZ-HST-200 Category:

Φ200-Φ300 High Speed Stranding Machine

Application

Auto high speed twisting machine apply to copper wire twisting for computer flat cable,

earphone cord, electronic wire,telephone cable, Automotive cable etc.



Specifications

Machine model ZY-HST-200 ZY-HST-250 ZY-HST-300(min)
Twisting Apply to over 7thread silver plate wire,tin plated wire,

enamelled

wire,naked copper wire,CCS,CCA etc super fine conductor

and cored wire twisting.

Finished wire range 19-32AWG
Twisting section(mm2) 0.0014-0.0035 0.005-0.3 0.0137-0.45
Diameter of single wire(mm) Φ0.016-0.08 Φ0.03-0.16 Φ0.05-0.16
Twisting distance(mm) 0.8-4.0 0.8-10.6

(24 kinds of

twisting diameter)

1.6-17.1

(24 kinds of

twisting diameter)

Gross weight(kg) Max 20 Max 20 Max 30
Max high axis rotation speed 5000rpm(10000t/min) 4000rpm(8000t/min) 3000rpm(6000t/min)
Twisting direction To left or right
Flat cable Polish rod traverse unit,pitch & throw adjustable
Take-up tension track Tension adjustable,pulled wire no deformation
Auto-stop machine 1.automatic brake in case of broken wire,in the body, the body

outside

2.Automatic meter, the meter automatically brake

Machine using bearing Main bearing made in Sweden,others in Japan
Power(HP) 3HP

controlled inverter

5HP controlled

inverter

5HP

controlled inverter

Noise level(dB) Approx 75
Machine dimension(mm) (L)1800×(W)750×(H)850 (L)1900×(W)750×(H)950
Net weight(kg) Approx 700 Approx 750 Approx 850

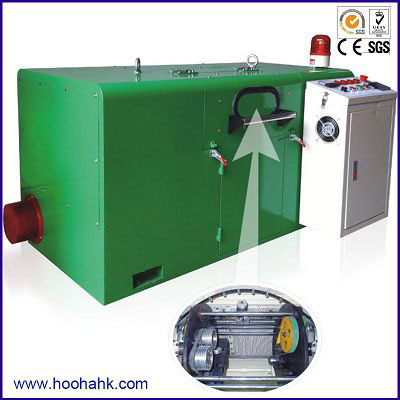

Φ200-Φ300 High Speed Stranding Machine.jpg

Φ200-Φ300 High Speed Stranding Machine



pay-off unit.jpg

pay-off unit
