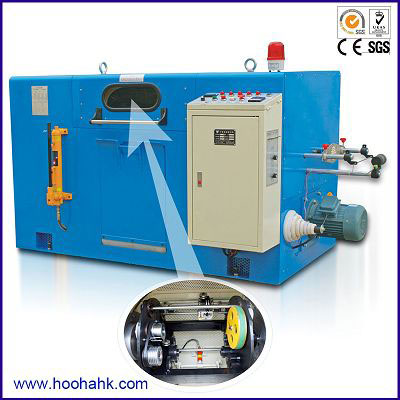

Φ500-Φ650 High Speed Stranding Machine

SKU: HZ-HST-650 Category:

Φ500-Φ650 High Speed Stranding Machine



Application

Auto high speed twisting machine apply to copper wire twisting for computer flat cable,

earphone cord electronic wire,power wire,telephone cable, Automotive cable, lane cable etc.



Specifications

Machine model ZY-HST-500 ZY-HST-650
Twisting Apply to over 7thread silver plate wire,

tin plated wire,enamelled wire,naked copper wire,CCS,

CCA etc super fine conductor and cored wire twisting.

Finished range 18-30AWG 16-26AWG
Twisting section(mm2) 0.05-2.50 0.80-6.00
Diameter of single wire(mm) Φ0.08-0.41 Φ0.12-0.64
Twisting distance(mm) 4.22-39.64

(30 kinds of twisting diameter)

4.20-130.00
Gross weight(kg) Max 250 Max 400
Max high axis rotation speed 2200rpm(4400t/min)/3000rpm(6000t/min) 1800rpm(3600t/min)
Twisting direction To left or right
Flat cable Polish rod traverse unit,pitch & throw adjustable
Take-up tension track Tension adjustable,pulled wire no deformation
Auto-stop machine 1.automatic brake in case of broken wire,in the body, the body

outside Automatic meter, the meter automatically brake

Machine using bearing Main bearing made in Sweden,others in Japan
Power(HP) 5-7.5HP controlled inverter 10HP controlled inverter
Noise level(dB) Approx 75 Approx 80
Machine dimension(mm) (L)2690×(W)1060×(H)1230 (L)2850×(W)1500×(H)1600
Net weight(kg) Approx 2000 Approx 4000
