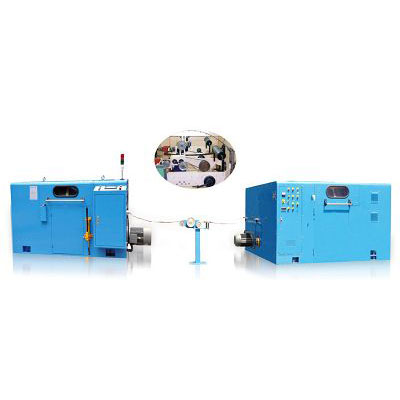

Φ500 Horizontal Double Bobbin & Φ500 Back Twist Machine
Application
Backward twisting synchronize while pair twisting for frequent data cable LAN CABLE(CAT6cable)
to insulated core wire position interlace equilibria,overcomes to pair twist tensions strength in equality, Thus make high-speed pair twist,Quality equality,Section from precisely.
Adapts to high-frequency cable to twist synchronize backward twisting.
Specifications
| Machine model | ZYS-BT-500 | ZYS-BT-630 |
| Application wire | CCP,PEF,PVC,F/S | |
| Conductor diameter(mm) | Φ0.32mm-Φ1.2mm | |
| Pay-off | Max.1000rpm.(2000twist) | Max.7500rpm.(1500twist) |
| Take-up | Max.4000rpm.(4000twist) | Max.1500rpm.(3000twist) |
| Line speed | Max.300m/min | |
| Pitch | Min.9.0mm | |
| Bobbin size | Max.Φ500×0.w.375mm | Max.Φ630×0.w.475mm |
| Bobbin loading & unloading | Electric elevating system | |
