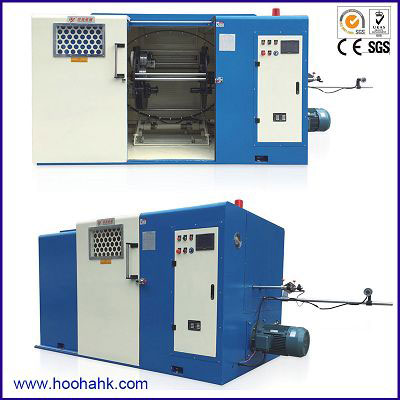

Φ800-Φ1000High Speed Stranding Machine

SKU: HZ-HST-1000 Category:

Φ800-Φ1000High Speed Stranding Machine

Application

Auto high speed twisting machine apply to copper wire twisting for computer

flat cable,earphone cord electronic wire,power wire,telephone cable,

Automotive cable, lane cable etc.

Specifications

Machine model ZY-HST-800 ZY-HST-1000
Twisting Apply to over 7thread silver plate wire,tin

plated wire,enamelled wire,naked copper wire,CCS,CCA etc super fine conductor and cored wire twisting.

Twisting section(mm2) 0.25-10.00 1.50-16.00
Diameter of single wire(mm) Φ0.38-1.00 Φ0.38-1.70
Twisting distance(mm) 22.51-155.32 35.00-200.00
Gross weight(kg) Max 900 Max 1200
Max high axis rotation speed 1200rpm(2400t/min) 800rpm(1600t/min)
Twisting direction To left or right
Flat cable Polish rod traverse unit,pitch & throw adjustable
Take-up tension track Tension adjustable,pulled wire no deformation
Auto-stop machine 1.automatic brake in case of broken wire,in the body, the body outside

Automatic meter, the meter automatically brake

Machine using bearing Main bearing made in Sweden,others in Japan
Power(HP) 15HP controlled inverter 25HP controlled inverter
Noise level(dB) Approx 75 Approx 80
Machine dimension(mm) (L)3673×(W)1550×(H)1650 (L)4473×(W)2200×(H)2300
Net weight(kg) Approx 5000 Approx 8000
