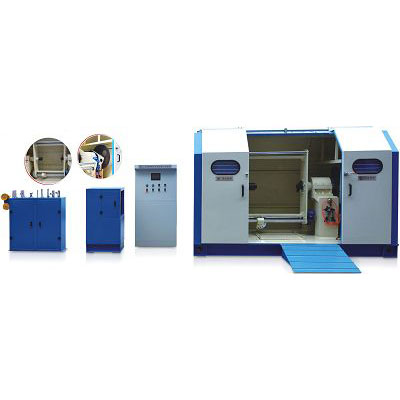

Φ800-Φ1250 High speed frame single twisting machine
Application
Apply to 2.5mm2-35mm2copper wire strand and Mica tape and nonwoven fabric central
tape with a one-time completely.
Characteristic
The machine is researched and developed by based on collecting the advantages of cantilever
single twister and frame twister,speed is faster,more efficient.Our factory exclusive
research and development of new single twister.
Specifications
| Machine model | ZY-STA-800 | ZY-STA-1000 | ZY-STA-1250 |
| Single wire OD(mm) | Φ0.4-φ4.0 | Φ1.0-φ5.0 | Φ1.0-φ6.0 |
| Max stranding OD | 20mm | 25mm | 30mm |
| Copper wire stranding | 2.5mm2-16mm2 | 4mm2-25mm2 | 4mm2-35mm2 |
| Stranding distance | 30-350mm | 40-350mm | 40-500mm |
| Pay-off bobbin size | Φ400-630mm | Φ400-630mm | Φ400-630mm |
| Take-up bobbin size | Φ800mm | Φ1000mm | Φ1250mm |
| Rotation speed | Max 550rpm | Max 500rpm | Max 400rpm |
| Main motor | 20HP inverter | 25HP inverter | 40HP inverter |
| Break | Pneumatic/hydraulic disc brake | ||
| Wraper | 2HP inverter | 2HP inverter | 2HP inverter |
Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF
