DDM-2020 Outside diameter testing machine

SKU: HH-015 Category:

DDM-2020 Outside diameter testing machine


-High-speed pulse infrared light source, high precision CCD and computer digital image processing technology such as new devices, new technology, with high precision, good stability, high life skills, scan rate, good dynamic performance.


-Conditions of use

Power:AC180V-260V 50HZ

Working temperature:5-45℃

Humidity of the air:≦90%

Power:≦40W


-Technical specification:

Effective measurement range ≤20mm
Recommend measuring range 0.1-16mm
Accuracy of measurement ±0.003mm
Exposure time ≤200µs/time
Equivalent scan rate 5000time/s
Output control interface -10V~+10V
The largest output current 5mA
Center height adjustable range 850~1100mm
Weight 15Kg

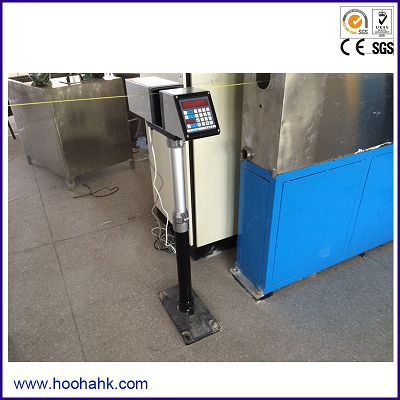

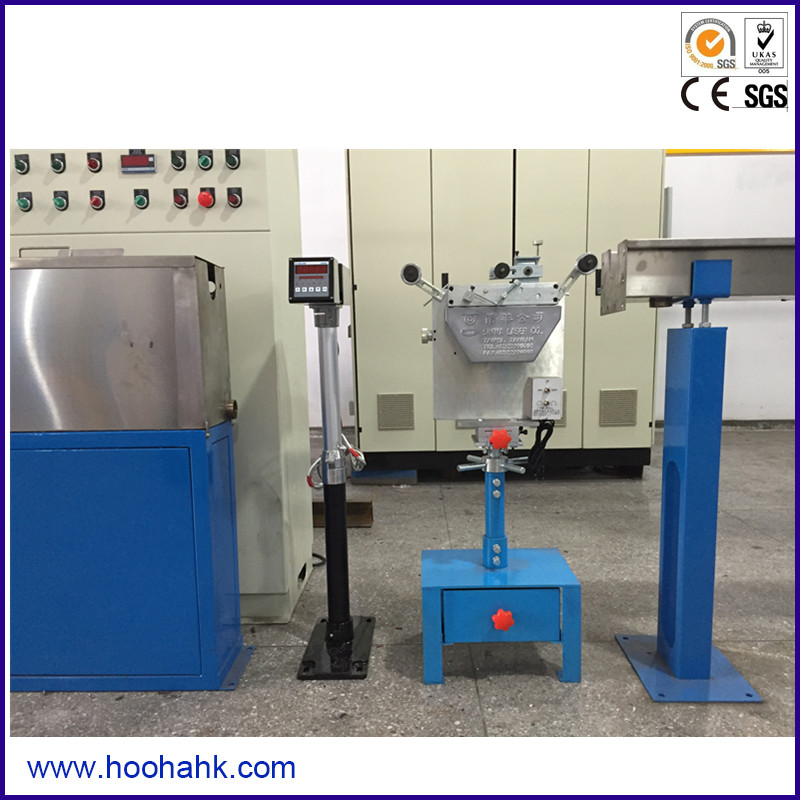

-Installation position

DDM – 2020 diameter measurement and control device can be installed before the cooling water tank, also can be installed after the sink. When installed before the sink, the measuring head near the extruder crosshead, timely feedback control, can get the best control effect, but has not yet solidified plastic, nominal value NO. should be set by the appropriate amendment.


Were measured after installed in the sink, is the actual value NO. of the cable diameter, more accurate and reliable, but the large amount of lag, the control effect is a bit poor. In addition must pay attention to, cable under test to dry, or cable outside water film will affect the measurement accuracy and practical use should be the analyte according to the degree of water, appropriate increase in nominal value NO.
