· Name: Rain test chamber
· Model: RS-IPX600

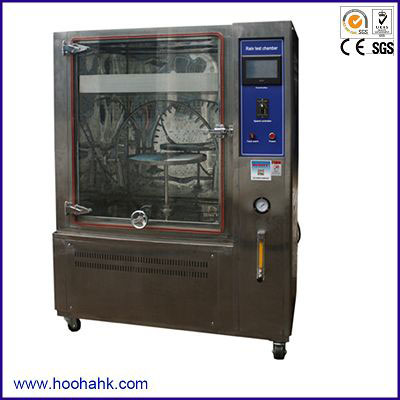

Name: Rain test chamber
Model: RS-IPX600
Purpose:
The test chamber, which meets the requirements specified in relevant standards including GB4706, GB4208 and GB2423, is used to test the rainproof performance of the equipments with rainproof function. It is applicable to the test of IPX1, IPX2, IPX3 and IPX4. It is provided with touch screen display and glass door with windscreen wiper.
Specification:
1. Drip rain test
| Model | RS-IPX600 |
| Drip area | 00 x 700mm |
| Hole pitch | 25 x 25 |
| Drip amount | 1-3.5mm/min |
| Time | 0-99min |
| Weight of test piece | 10Kg |
| Angle of test bed | 0° and 15°, adjustable, manual |
| The distance between the drip tank and the rotary table is adjustable | 0～300mm |
| Stainless steel water tank and case and visual glass windows and doors | |
| The water is drained directly by the drain pipe, without water circulation | |
2. Swing pipe rain test
| Model | RS-IPX600 |
| Radius of swing pipe | 375mm |
| Angle of swing pipe | ±60 and ±180° with the vertical direction |
| Orifice | φ0.4mm |
| space between two orifices | 50mm |
| Rain pressure | 100～500Kpa |
| Time of oscillation | 60° in every one second |
| Material | the parts of the swing pipe, etc. contacting with the water are all stainless steel |
| The test rotary table and drip device are for public use | |
