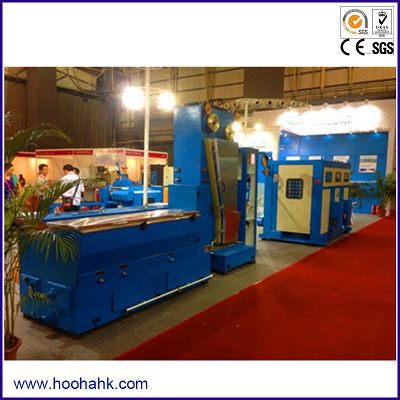

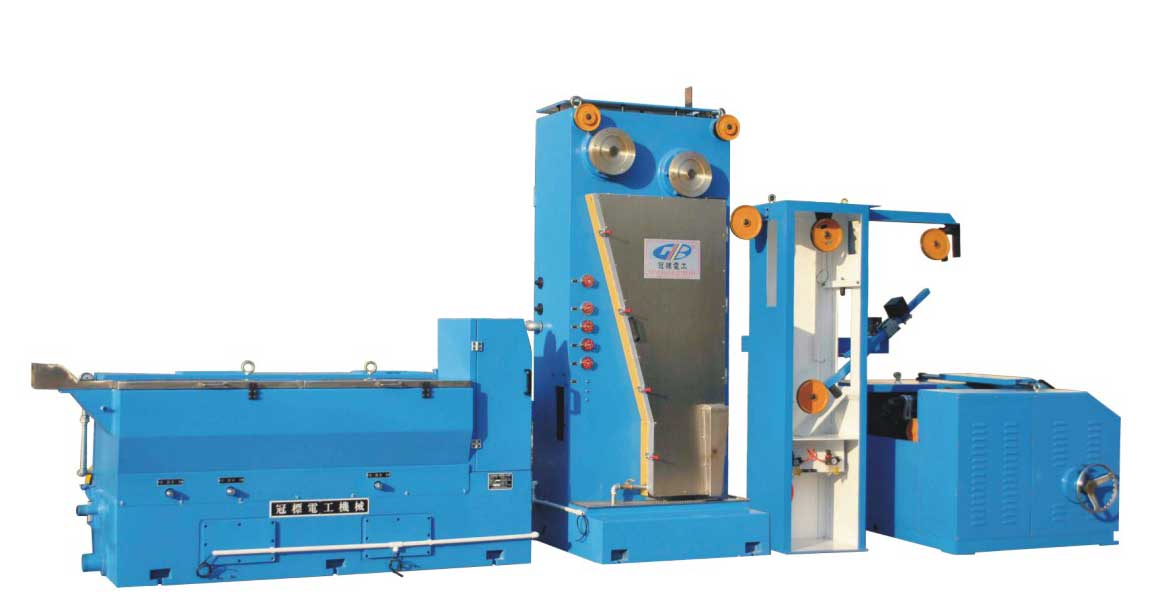

Intermediate wire drawing and annealing machine

SKU: ZLT250 Category:

Specifications

Intermediate wire drawing machine
1.High productivity, small power consumption 2.High precision gear drive with low noise


Intermediate wire drawing and annealing machine

Technical parameters

Type ZLT250/17 ZLT250/21
Power control Dual-inverter
Input wire Φ2.6-Φ3.0mm Φ2.6-Φ3.0mm
Output wire Φ0.40-Φ1.2mm Φ0.40-Φ1.2mm
Maximum line speed 1800m/min 1800m/min
Maximum number of dies 17 21
Mechanical elongation 25%+18.7% 18.4%+15%
Construction of the machine body Casting +steel plate welding and annealing
Drawing capstan Tungsten carbide
Final capstan Φ250mm
Drawing/take-up motor AC55kW/AC11kW
Take-up type SN500(SN630)Φ500×Φ300×345
Drive Gear drive
Tension adjustment Buffer rod with air cylinder and rocker arm
Correction system PIDAutomatic control of take-up by PID
Maximum copper load 200kg, 500kg
Power supply 380V, 50/60HZ
Volume of lubricant 100L/min
Lubrication of wire drawing Lubrication by full immersion
Brake Disk type brake
Annealing capacity 85KVA
Annealing voltage Max-65V
Annealing current 1000A
Steam consumption 10-12m3/h, 0.2-0.30Mpa
Cooling water consumption 12-18m3/h, 0.2-0.25MPa
Air consumption 20-30m3/h, 0.4-0.6MPa
DimensionsL×W×H 9000×3000×3000mm
Weight ca.7000kg
