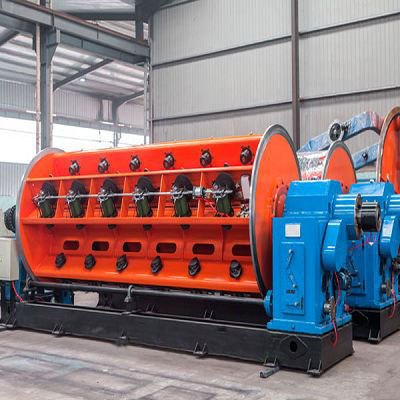

Rigid Stranding Machine

SKU: HH-500/ 630 Category:

Product Application:

It mainly used for the skewering of bare aluminum wire, naked copper wire, aluminum stranded wire, fan shaped wire core, round wire core drawing and pressing.




Equipment Composition:

Center Setting Frame, 6、12、18、24、30 Plate Main Engine, Line Mole Base, Compression Device, Coupling Device, Retracting and Arranging Device, Transmission system and Electrical System.




Technical Parameter:



Specifications and Models 500 630
Single Wire Diameter Copper 1.5-5.0
Aluminum 1.8-5.0
Main Engine Speed (r/min) 50-164 46-134
Winding Pitch (mm) 45-1105 56-1259
Line Speed (m/min) 7.32-55.29 7.62-57.93
Take-up Reel PN2500
