Product Usage:

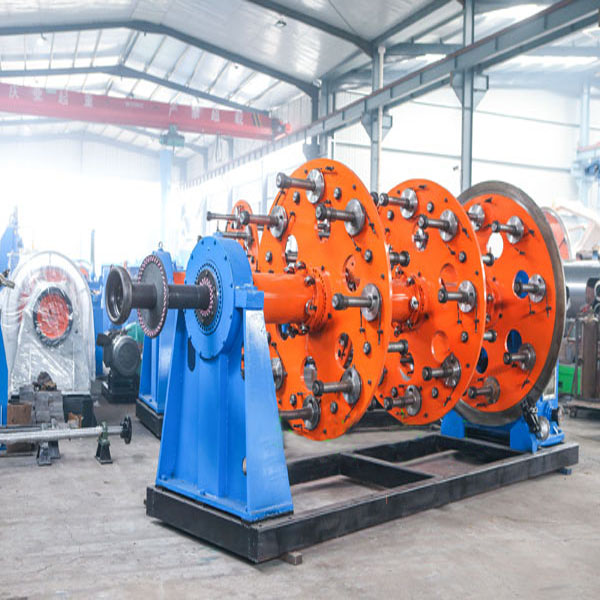

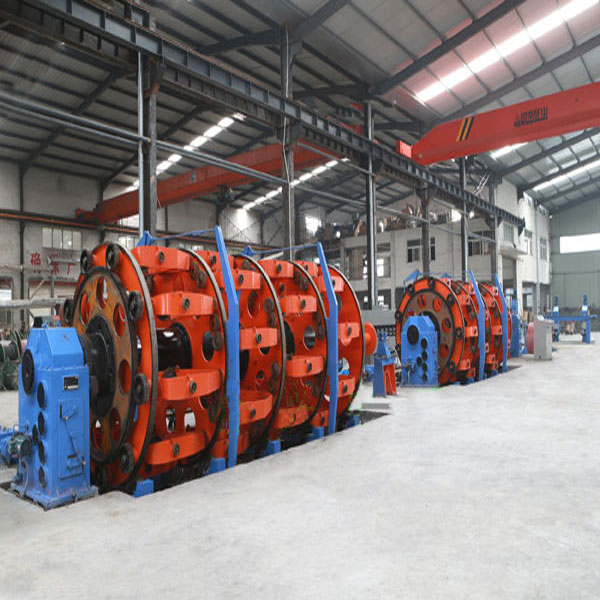

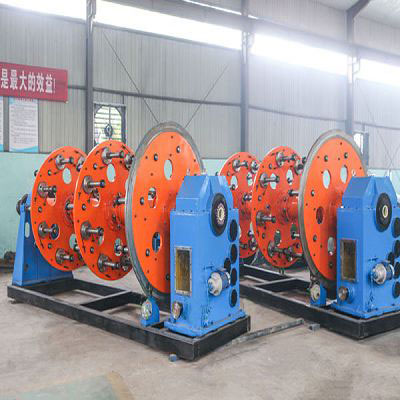

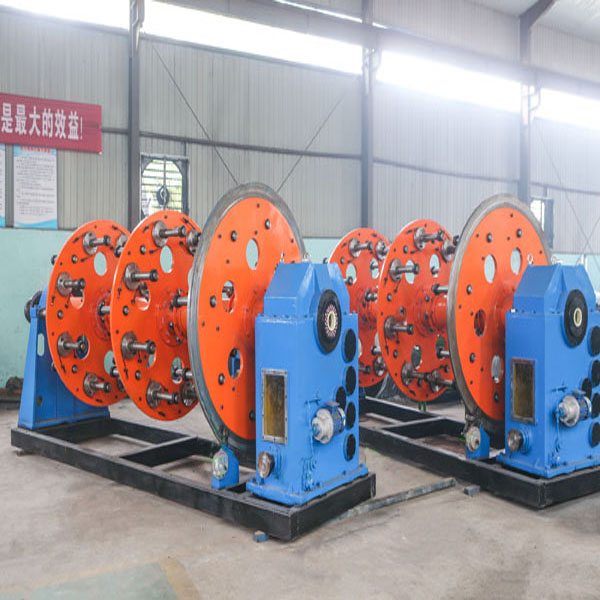

This series of equipment is mainly used for single-layer or double-layer steel wire armoring of all kinds of cables and optical cables, and can also be used for making large size steel wire ropes.
Equipment Composition:
Center Pay off, Armoring Host, Lines Mold Base, Wrapping Device, Draft Gear, Meter Counter Machine, Retracting and Arranging Device, Transmission System, Electrical System.
Technical Parameter:
| Wire diameter (mm) | 1.0-5.0 |
| Armor diameter (mm) | 130 |
| Main engine speed (r/min) | 22-53 |
| Armoring pitch (mm) | 106-1570 |
| Wrapping speed (r/min) | 185-416 |
| Wrapping pitch (mm) | 9.7-146 |
| Line Speed (m/min) | 3.13-30 |
| Diameter of traction wheel (mm) | 2500 |
| Specification of wire reel in cage | PN500 |
| Center reel | PN3150 |
| Take-up reel specification | PN3150 |
