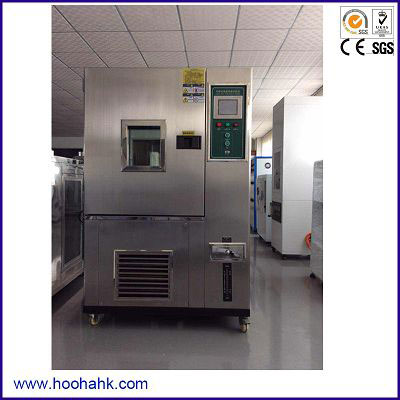

High quality Programmable Constant Temperature & Humidity Test machine

· Name: Programmable Constant Temperature & Humidity Tester

· Model: JS-225L

Name: Programmable Constant Temperature & Humidity Tester

Model: JS-100L/150L/225L/408L/800L/1000L

Purpose:

This machine is to test heat endurance, cold endurance, dry endurance, wet endurance of various materials. It applies for

quality control of electronic goods, electric appliance, measurement device, food, automobile, metal, chemical, plywood,

aviation, medical and etc.

Standard:

GB-2423.1-89 ( IEC68-2-1 ) GJB150.4 ( MIL-STD-810D )

GB-2423.2-89 ( IEC68-2-2 ) GB2423.3-93 ( IEC68-2-3 )

GJB360.8-87 ( MIL-STD-202F ) GB2423.4-93 ( IEC68-2-30 )

GJB150.3 ( MIL-STD-810D ) GJB150.9-93 ( MIL-STD-810D )

Specification:

Model	JS-100L	JS-150L		JS-225L	JS-408L	JS-800L		JS-1000L
Temp-range	A:－20℃～＋150℃, B:－40℃～＋150℃, C:－70℃～＋150℃
Humid-range	20% R.H ~98% R.H
Temp-accuracy	±0.5℃
Humid. Accuracy	±3%R.H
Temp. uniformity	±5℃
Time for heating up	35min for －20℃～＋100℃， 45min for －40℃～＋100℃, 60min for －70℃～＋100℃
Time for cooling down	40min for ＋20℃～－20℃，55min for ＋20℃～－40℃, 90min for ＋20℃～－70℃
Interior dim (WxHxD) mm	400x500x500	500x600x500		500x750x600	600x850x800	1000x1000x800		1000x1000x1000
Exterior dim(WxHxD) mm	1000x1450x1050	1000x1500x1100		1000x1650x1200	1100x1750x1400	1500x1900x1400		1500x1900x1600
Interior material	Stainless steel SUS304 (mirror)
Exterior material	Stainless steel SUS304 (matt)
ThermalInsulation material	Rigid polyfoam (To use glass wool at 150℃)
Cooling system	Hermetic compressor
Accessories	Observation window, freely adjustable shaft for 2 layer, test hole for 1pcs at ￠50mm, chamber lamp
Weight	220Kg		250Kg	300Kg	400Kg	600Kg		700Kg
Power supply	AC220V 3KW or specified by user		AC220V 4KW or specified by user	AC380V 5.5KW or specified	AC380V 7.5KW or specified		AC380V 10KW or specified	AC380V 11KW or specified
