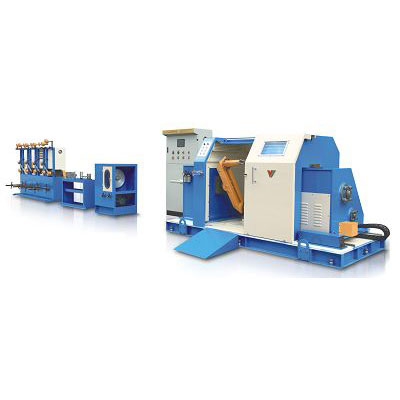

Φ630-Φ800 Cantilever High Speed Single Twisting Machine

Φ630-Φ800 Cantilever High Speed Single Twisting Machine

Application:The machine manly apply to multiple cable of data cable,HDMI wire cable,power

cable, naked copper wire(fine wire), shielding layer cable, control cable etc.

Configuration:Singles stranding main unit, electric control system,Centre wrapping machine,

side-way giving wrap & wire device.

Traits

1.computer control pitch,non-tension traction wheel,motion wiring cable passing path,increase

the traction wheel diameter to reduce the wire cable curve.

2.Stranding main unit cantilever arm structure,revolving body with low rotating inertia,high

rpm and stable speed.

3.Coiling box move trays left and right along the slide way,pitch stable with stepless

adjusting,stranding wire cable ranking neat,balance tension.

4.Compared with traditional single stranding machine,it has the advantage of avoiding screw

rod breaking at high speed.

5.Tray loading and discharging easy with low labour consumption.

Specifications
