Product Usage:
Specially for copper stranded wire, aluminum stranded wire, steel stranded wire, steel core aluminum stranded wire and steel wire rope.Equipped with Wrapping, it can also be used for stranding of insulated core cable and partial control cable.
Components:

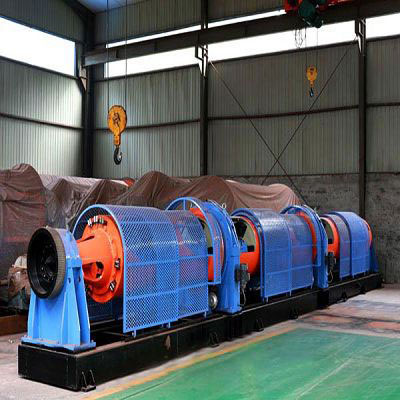

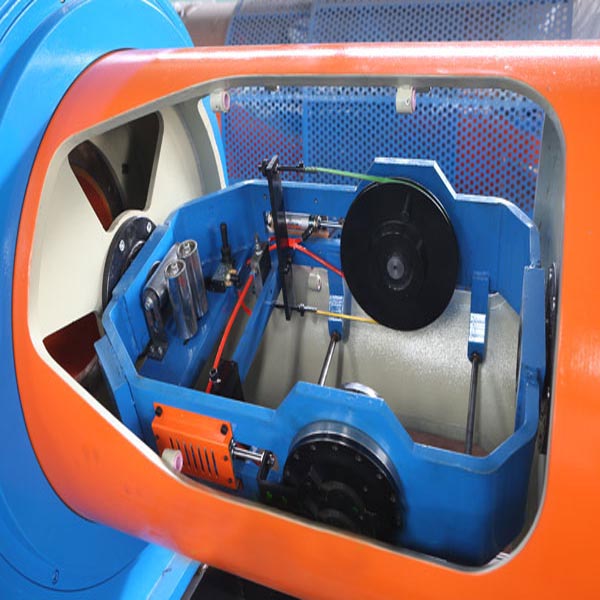

Center pay-off machine, tubular stranding host, wrapping machine (selected), traction device, taking-up and traversing device and electrical system.
Technical Parameter:
| Model | 400 | 500 | 630 | |
| Inlet Diameter(mm) | Conductor | 1.5-3.5 | 1.8-4.0 | 2.0-5.0 |
| Steel | 1.0-2.5 | 1.5-3.0 | 1.8-4.0 | |
| Stranded | 1.2-3.5 | 1.5-5.0 | ||
|
Rotational Speed of Main Machine |
600 | 500 | 350 | |
|
Stranded Wire Pitch(mm) |
26-238 | 49-450 | ||
|
Outgoing Speed(m/min) |
15-143 | 24-225 | 17-157 | |
|
Traction Wheel Diameter(mm) |
800 | 1000 | 1250 | |
|
Take-up Bobbins Spec. |
PN1250 | PN1600 |
PN1800
|
|
