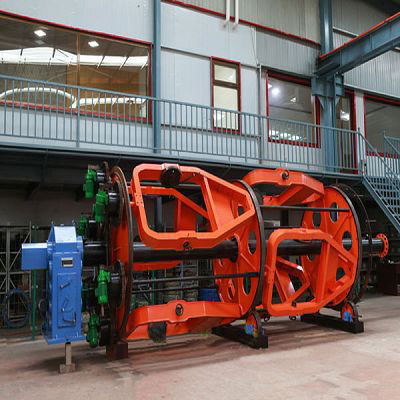

Cabling Machine

SKU: HH-100/ 1250/ 1600/ 2000 Category:

Product Usage:



This series of products are suitable for various sections of multi-core rubber sheathed cables, power cables, cross-linked cables, telephone cables, control cables, cable and armoring.



Components:



Center pay-off stand, grinding cage host, wire die base, wrapping machine, armoring machine, meter counter, single wheel traction device, taking-up and traversing device, transmission system and electrical system.



Technical parameter:



Model 1000 1250 1600 2000
Inlet Diameter(mm) 5-20 6-25 10-35 15-45
Cable Diameter(mm) 60 80 100 120
Rotational Speed of Main Engine (r/min) 10-25 4.3-12.3 3.9-11.2
Cabling Pitch (mm) 228-3750 330-6320 362-6969
Lapping Speed(r/min) 185-416 136-303
Lapping Pitch (mm) 11.3-200 13.4-200
Armoring Speed(r/min) 185-416 136-303
Armoring Pitch (mm) 11.3-200 13.4-200
Traction Wheel Dia. (mm) 1800 2000 2500
Outgoing Line Speed (m/min) 5.07-37.5

4.06-27.2
