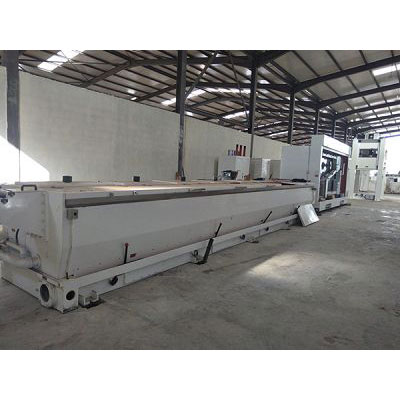

Intermediate & large wire drawing machine with anneraler
| Technical parameter | |
| Model | ZLT350/9 |
| Control system | digital button |
| power control | dual inverter |
| wire inlet dia | 2.6-3.5mm |
| wire finished diameter | 1.0-2.76mm |
| max wire speed | 1200m/min |
| max dies No. | 9 |
| transmission type | gear drive |
| mechanical elongation | 25%+16.7% |
| drawing capstan | tungsten carbide |
| construction of the machine body | casting+steel plate welding and annealing |
| capstan diameter | Max 350mm |
| fix speed capstan diameter | 350mm |
| spool bobbin size | SN500 SN630 option |
| bobbin loading unloading type | dual shafts cone |
| traversing unit | AC reducer motor and timing belt |
| main motor | AC55kw(6P) |
| spool motor | AC11kw |
| revise system | revise system automatic control of take up by PID |
| tension control | tension control buffer rod with air cylinder and
rocket arm |
| max loading capacity | 250kg(SN500) or 500kg(SN630) |
| lubrication type | lubrication by full immersion |
| lubrication capacity | 100L/min |
| brake | disk type brake |
| lubrication type for bearing | pump enforce oil |
| annealing control | 3 poles DC current output |
| annealing capacity | 150KVA |
| annealing voltage | max 65V |
| annealing current | 2500A |
| power source | 380V/50/60Hz |
| total power | 77kw+150KVA |
| steam dosage | 10-12m³/h, 0.2-0.3Mpa with 9kw steam generator |
| cooling water consumption | 15-20m³/h 0.2-0.25MPa |
| air consumption | 20-30m³/h 0.4-0.6MPa |
| machine dimension | 14*3.5*4M |
| gross weight | 7000kg |
