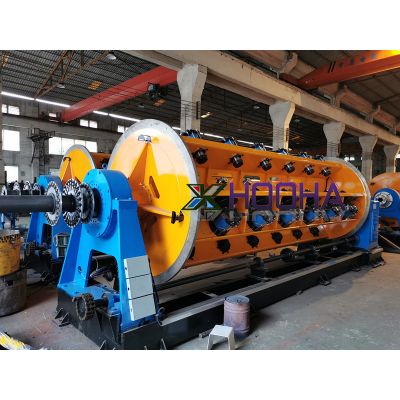

JLY Cage stranding machines
Application of the equipment：
This machine is widely used in a variety of multi-core control cable into a cable and armored.
The cross-section of the wire core 1.5 ~ 6mm2.
Advanced practicality and performance of the machine, beautiful appearance, easy operation,
maintenance and repair, is the choice for small and medium-sized cable factory equipment.
The main technical parameters： Device Center high 1000mm
| No.
|
Parameter name | Unit | JLY400/6+12+18+24Type | JLY500/6+12+18+24Type |
| 1 | The diameter of the wire core | mm | 2-5 | 2.5-5 |
| 2 | Stranded maximum diameter | mm | 45 | 50 |
| 3 | Maximum speed | r/min | 51.5-118 | 35-94 |
| 4 | Stranding pitch | mm | 41～1136 | 60～1754 |
| 5 | Traction speed | m/min | 4.86～58.5 | 5.63～61.4 |
| 6 | Reel specifications | mm | PN400 | PN500 |
| 7 | Around Baotou speed | r/min | 128～686 | 128～686 |
| 8 | Baotou pitch | mm | 7～457 | 8～479 |
| 9 | Baotou Steel speed | m/min | 191～781 | 191~781 |
| 10 | Baotou Steel Pitch | mm | 6～306 | 7～321 |
| 11 | Reel size | mm | PN1000～PN2000 | PN1000～PN2000 |
