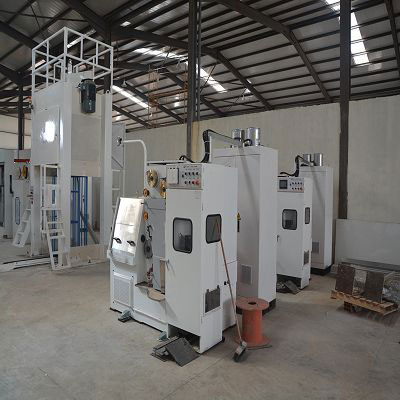

Vertical super-fine wire drawing machine
| wire drawing machine | |
| Model | SMD100/24A |
| control system | digital readout button or LCD computer control |
| power control | dual inverter |
| wire inlet diameter | 0.08-0.20mm |
| wire finished diameter | 0.025-0.06mm |
| max wire speed | 2000m/min |
| max dies NO. | 24 |
| mechanical elongation | 8%+7% |
| construction of the machine body | steel plate welded, vertical four shafts interface |
| drawing capstan | import ceramic coated |
| capstan diameter | 100mm |
| fix speed capstan diameter | 100mm |
| spool bobbin size | 190*157*198mm |
| drawing/take up motor | AC11kw/AC4kw |
| bobbin loading unloading type | single shaft cone |
| traversing unit | synchronous motor and flat belt |
| main motor | 4kw |
| spool motor | 1.5kw |
| tension adjustment | weight type tension pulley |
| fix system | automatic control of take up by PID |
| max loading capacity | 12kg |
| lubrication capacity | 20L/min |
| lubrication type | spraying |
| brake | magnetic brake |
| power source | 380V,50/60HZ |
| dimensions | 2.25*1.06*1.7M |
| weight | 1500kg |
