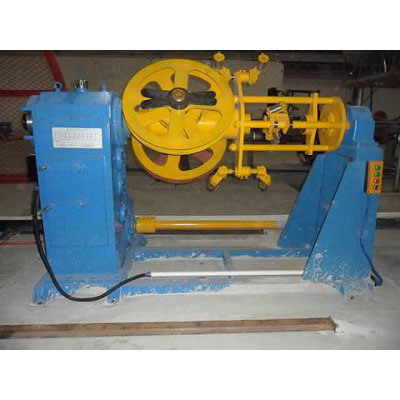

KRB Steel tape armoring machine

Application of the equipment：

The main technical parameters： Device Center high 1000mm

No.	Parameter name	Unit	KRB650Type	KRB800Type
1	Line core.cross-sectional area	mm²	2.5～16	10～120
2	Cabling diameter	mm	40	50
3	The speed of the machine	r/min	24.6～56.5	11.1～25.1
4	Cabling pitch	mm	90～2889	90～2889
5	Traction speed	m/min	2.4～33.1	2.2～32.7
6	Reel specifications	mm	PN630	PN1000
7	Around Baotou speed	m/min	191～781	108～444
8	Baotou pitch	mm	3～173	5～302
9	Baotou Steel speed	r/min	139～568	81～323
10	Baotou Steel Pitch	mm	4～238	6～403
11	Reel size	mm	PN100～PN1600	PN100～PN2000
