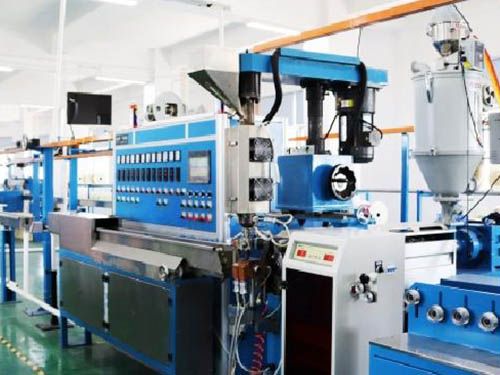

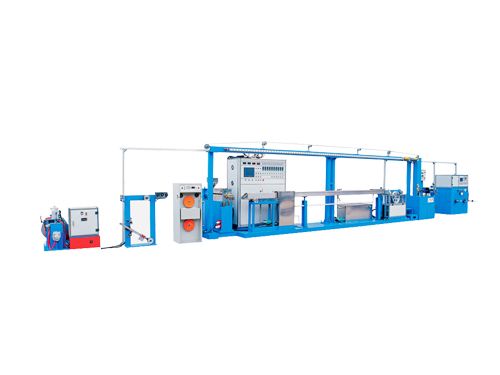

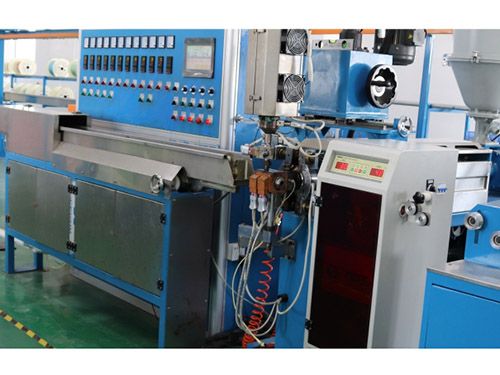

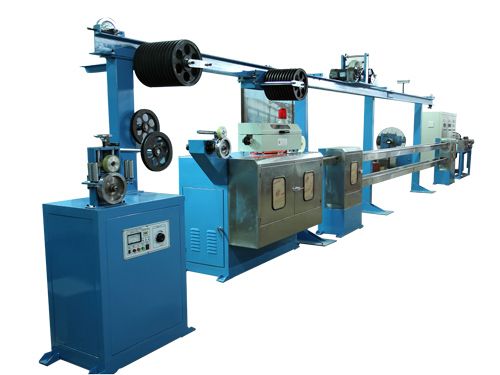

Wire extruder is used by wire and cable factories to heat extrude polyethylene, PVC, etc. to insulate the wire core of the wire or to protect the cable. The whole machine is composed of pay off frame, main extruding machine, cooling water tank, blow dry, printer, capstan, take-up and arrangement machine, temperature control electrical operation cabinet, etc.
Available Models:
| Model | SEXT-45 | SEXT-70 | SEXT-90 | SEXT-120 |
| Main motor power(kw) | 11 | 22 | 37 | 45 |
| Pushes rubber quantity(kg/h) | 30 | 80 | 135 | 260 |
| Screw diameter(mm) | 45 | 45 | 45 | 120 |
| L/D radio | 12:1 | 14:1 | 14:1 | 14:1 |
| Line speed(m/min) | 10-200 | 10-200 | 4-40 | 4-40 |
| Wire diameter(mm) | 0.2-3.0 | 1.5-6.0 | 2.1-110 | 5.0-15 |
| Finished cable dia (mm) | 0.8-5.0 | 1.8-8.0 | 3.0-12 | 8.0-20 |
| Heating Power | 3 section 36kw | 4 section 48kw | 6 section 72kw | 9 section 84kw |
| Traction motor power (kw) | 2.2 | 4 | 7.5 | 11 |
| Vulcanization tank length (m) | 12 | 16 | 24 | 24 |
| Take up bobbin size (mm) | 400-500 | 400-630 | 1250-1600 | 1250-2000 |
