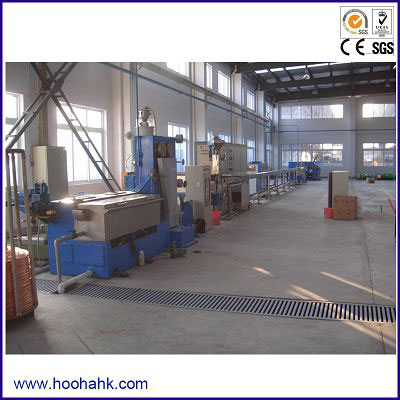

High Speed Tandem Extrusion Line

SKU: HZ-WE-T1 Category:

High Speed Tandem Extrusion Line



Application

It fits the extrusion process in making LAN cable(like CAT5e and CAT6) and insulative telephon

cables,composition of equipment:It consist for such processes as wire drawing,annealing,

preheating,insulation extruding,auto take-up,online outer diameter testing and eccentricity

inspection.




Specifications

Extrusion machine
MaterialPVC,PE,LDPE
Inlet conductor diameterφ2.5-3.0(mm)
Product conductor diameterφ0.4-1.2(mm)
Insulated wire diameter0.9-2.0(mm)
Line speedMax 1200m/min
Drawing machine
Copper specificationsPer ASTM B-49-90 and B-3-90
Inlet copper wire12-8 AWG(2.0-3.26mm)
Outer bare copper wire28-19AWG(0.32mm-1.2mm)
Maximum finished diameter0.60mm-1.50mm
Running tensions1.1lbs.-3.85lbs.(0.5kg-1.75kg)
Line speed2500m/min
