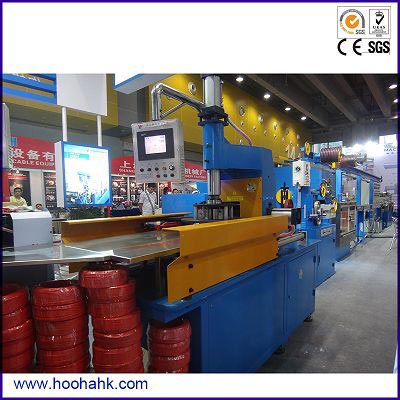

Jacket sheath extrusion line

SKU: HZ-WE-90 Category:

Jacket sheath extrusion line


Applied to BV,BVV,BVR,RV,Nylon sheath,and halogen-free environment-friendly building wire.



Machine modelZY-WE-70ZY-WE-80ZY-WE-90
Pay-off line typeDouble axes/dynamic drum take-upDouble axis way
Pay-off bobbin size(mm)400-630630-800
Screw diameter(mm)φ70φ80φ90
L/D of screw25:1 BM type
Extrusion capacity(kg/hr)140200250
Main unit power(HP)304050
Cooling deviceSingle layer/double
Accumulator capacity200m
Capstan power(HP)57.57.5
Wire speed(meter/minute)0-5000-4500-400
Take-up line typeDouble axes bundle packing /axis

packing/swaying tray coiler packing

Double axis way/axis
Receving reel500mm-630mm
Take-up line power(HP)557


Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF


Consisting Components:
1,double-shaft pay-off rack
2,straightener platform
3,main extruder
4,automatic dryer and hopper
5,electric apparatus main control cabinet
6,Double layer movable trough
7,laser diameter gauge or Digital Diameter controller
8,high speed printing machine
9,double-wheels capstan
10,Meter counter
11,horizontal type wire-accumulator
12,power frequency sparker
13,double-shaft take-up machine
