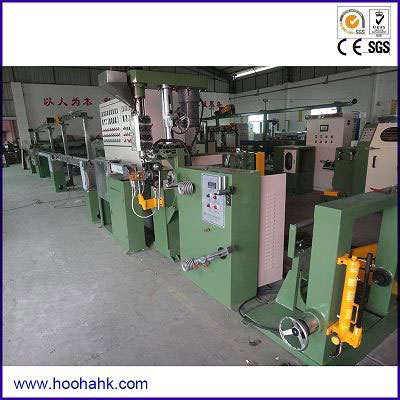

Building wire (low smoke free halogen)extrusion line

Building wire (low smoke free halogen)extrusion line

Application

Applied to BV,BVV,BVR,RV,Nylon,and halogen-free environment-friendly building wire.


building-wire-end-product

Feature

1.PLC+professional numerical control software,industrial computerized operation.Store,display & revise the technical parameter,wholly controlling,adjusting and monitoring the state of the producing.

2.Equipped the advanced,special universal Cross-head,two-layer Cross head,to fulfill the precise extruding technical

requirements.

3.Use Japan special design screw,fulfill different kinds of material extruding.

4.This line is moveable,horizontal type,up/down,left/right,front/back,adjustable.

5.Use high-efficiency pay off unit,non-stop operation.

6.Max speed:500m/min.











Specifications

Machine modelZY-WE-60ZY-WE-70ZY-WE-80ZY-WE-90
Pay-off line typeDouble axes /Dynamic drum take-upDouble axis way
Pay-off bobbin size(mm)Φ400-630mmΦ400-630mmΦ400-630mmΦ400-630mm
Screw diameter(mm)Φ65Φ70Φ80Φ90
L/D of screw25:1BM type25:1BM type25:1BM type25:1BM type
Extrusion capacity(kg/hr)100140200250
Main unit power20HP30HP40HP50HP
Wire spec.(mm)Φ0.8-8Φ1.5-12Φ2-20Φ3-25
Cooling deviceSingle layer/DoubleSingle layer/DoubleSingle layer/DoubleSingle layer/Double
Accumulator capacity(m)250200200200
Capstan power3HP5HP7.5HP7.5HP
Wire speed(m/m)MAX500MAX500MAX450MAX400
Take-up line typeDouble axes bundle packing /axis packing /swaying tray coiler packingDouble axis way /axis
Take-up bobbin size(mm)Φ500-630mmΦ500-630mmΦ500-630mmΦ500-630mm
Take-up line power3HP5HP5HP5HP



Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF



Consisting Components:
1,double-shaft pay-off rack
2,straightener platform
3,main extruder
4,automatic dryer and hopper
5,electric apparatus main control cabinet
6,Double layer movable trough
7,laser diameter gauge or Digital Diameter controller
8,high speed printing machine
9,double-wheels capstan
10,Meter counter
11,horizontal type wire-accumulator
12,power frequency sparker
13,double-shaft take-up machine
