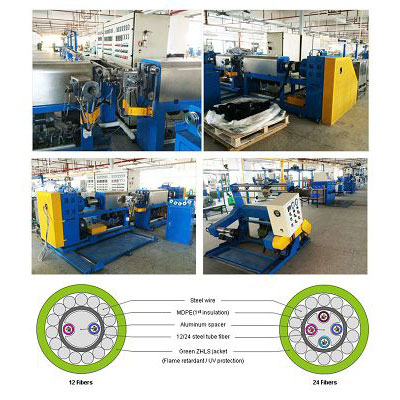

Irradiation Rubber Vulcanize Extrusion Line

Irradiation Rubber Vulcanize Extrusion Line



Chose the product with the advantage of ultra low-cost equipment,low-cost factory,enhance efficiency and more

environment friendly.



Production technology

Environment radiation rubber wire and cable materials→radiation rubber extrude

→set of core line →radiation rubber sheath extrude→radiation curing→finished product



New radiation rubber wire and cable extrusion product enter into marker of this machine make the rubber

production line is no longer unattainable.No need huge money to purchase large equipment and boilers,no need

large production plant,only a small investment in equipment manufacturing like PVC wire you can make high

standards,and more environmentally friendly rubber wire and cable(lower production costs than conventional

curing 25%).



Products fully comply with UL,VDE request,as long as you have shot irradiation factory nearby,you can select

bold,we will provide equipment and technology to provide counseling and materials to solve all your worries.



Application

Mainly apply to rubber wire cable production,can separately complete single layer insulation wire cable,double layer

extrusion wire,color strip cable and double parallel line wire cable insulation layer or jacket extrusion and continuous

vulcanization.



Specifications

Machine model	ZY-WE-50	ZY-WE-70	ZY-WE-90	ZY-WE-100	ZY-WE-120	ZY-WE-150
Diameter before ext(mm)	Φ0.5-3	Φ1-5	Φ3-15	Φ5-20	Φ12-36	Φ20-60
Diameter after extrusion(mm)	Φ2-5	Φ3-10	Φ5-25	Φ8-25	Φ15-42	Φ26-70
Screw (rpm)	60	50	50	40	30	30
Length-diameter ratio(L/D)	18:1	18:1	18:1	18:1	18:1	18:1
Extrusion capacity(kg/hr)	50	100	250	300	400	550
Main power(HP)	20	40	60	75	100	185
Traction wire speed(m/min)	150	120	100	80	60	40
Vulcanize tube length(m)	120	120	100	100	90	90
