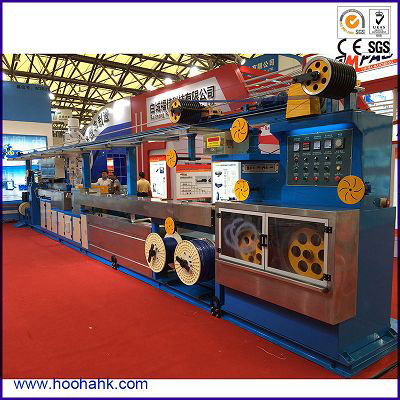

Electric and electronic wire extrusion line

SKU: HZ-WE-30 Category:

Electric and electronic wire extrusion line



It is suitable for single-layer,dual color,dual-layer and three layer extrusion operates

in making wires and cables with such insulation materials as PVC,LDPE,XLPE,LSHF,NYLON and TPU,TPE.



Pay-off typeActive typeDual-shaft typeDual-shaft type/big-shaft type/shaft free type
Pay-off diameter(mm)300/400/500400/500/630500/630/800/1250
Screw diameter(mm)30/40/5060/65/7080/90
Screw L/D25:1
Bold speed(rpm)10-11010-10010-80
Feeling speed(kg/h)250300
Host’s power(kw)5.5/7.5/1118.5/2230-37
Wire diameter(mm)0.6/6.02.0-12.04.0-20.0
Cooling systemFold away V shape or single(dual) layer U shape
Max.accumulation length(m)250200150
Take-up power(kw)2.23.7-5.55.5
Linear speed(m/min)0-6000-400
Take-up typeDouble axis equipment/axis equipmentDual-shaft type/big-shaft type/shaft free assembly
Take-up reel diameter(mm)300/400/500400/500/600500/630/800/1250
Take-up power(kw)2.23.7/5.5



Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF


Consisting Components:
1,double-shaft pay-off rack
2,straightener platform
3,main extruder
4,automatic dryer and hopper
5,electric apparatus main control cabinet
6,Double layer movable trough
7,laser diameter gauge or Digital Diameter controller
8,high speed printing machine
9,double-wheels capstan
10,Meter counter
11,horizontal type wire-accumulator
12,power frequency sparker
13,double-shaft take-up machine
